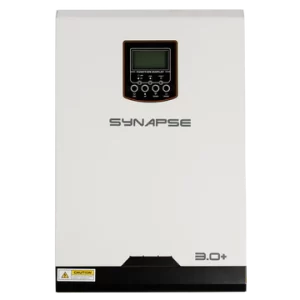

Synapse Offgrid inverter, 60A MPPT, 24VDC, 3kW

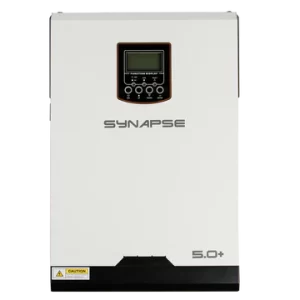

Synapse Offgrid inverter, 80A MPPT, 48VDC, 5kW

Technical Specifications:

  • Rated Power: 5000W
  • Voltage: 230V AC
  • Surge Power: 5000VA
  • Efficiency: 90-93%
  • Transfer Time: 10mS (for personal computers); 20mS (for home appliances)
  • Waveform: Pure sine wave

Battery:

  • Battery Voltage: 48VDC
  • Floating charge Voltage: 54V DC
  • Overcharge Protection: 63V DC
  • Important Note: When using this inverter with Lithium batteries, care should be taken to correctly size the bank, taking into account the maximum current which this inverter requires VS what the battery can deliver. Maximum continuous current per inverter = +-110A, max. peak current = +-220A (depending on battery SOC / terminal voltage).

Solar Charger & AC Charger:

  • Max PV Array Power: 4000W
  • Max PV Array VOC: 500V DC
  • MPPT Range @ Operating Voltage: 120 ~ 450V DC
  • Max Solar Charger Current: 80A
  • Max AC Charger: 60A
  • Max total charge current: 80A

Physical:

  • Dimensions: 100 x 300 x 440mm (D x W x H)
  • Weight: 10kgs
  • Communication Interface: USB / RS232
  • Environment:
  • Humidity: 5% to 95% Relative Humidity (Non-condensing)
  • Operating temperature: -10°C to 50°C
  • Storage Temperature: -15°C to 60°C
